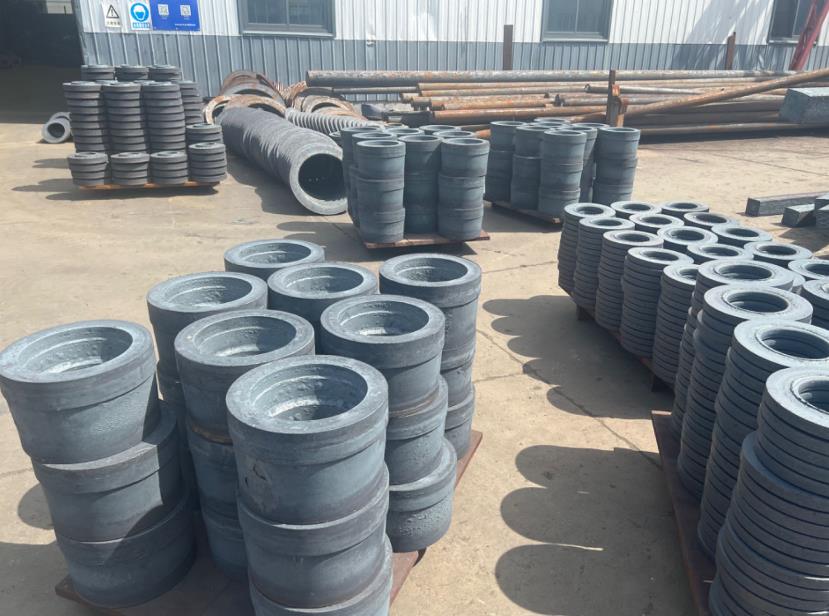

Forging

right here are three most important motives for selecting forgings:




1. High strength

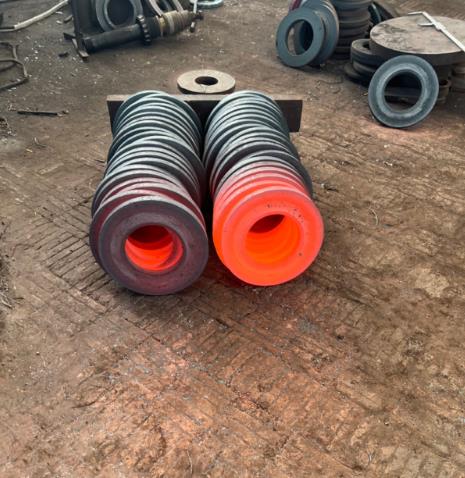

Hot forging can promote crystallization and grain refinement, enabling substances to reap the absolute best feasible energy and consistency, whilst decreasing variations between parts. The particle float flows finely alongside the contour of the valve body. These continually flowing wires assist minimize the incidence of fatigue or frequent faults.




2. Reliability




The forging overall performance that can meet the layout structural necessities has continually been one of the extra vital benefits of forgings, and to some extent precedes the above characteristics




3. Structural Integrity




Forging eliminates interior defects and produces a steady metallic structure, making sure first-rate performance. In areas with extreme stress and intergranular corrosion, forgings can make certain a longer carrier lifestyles and trouble-free use.


Contact Now WhatsApp
Product Details

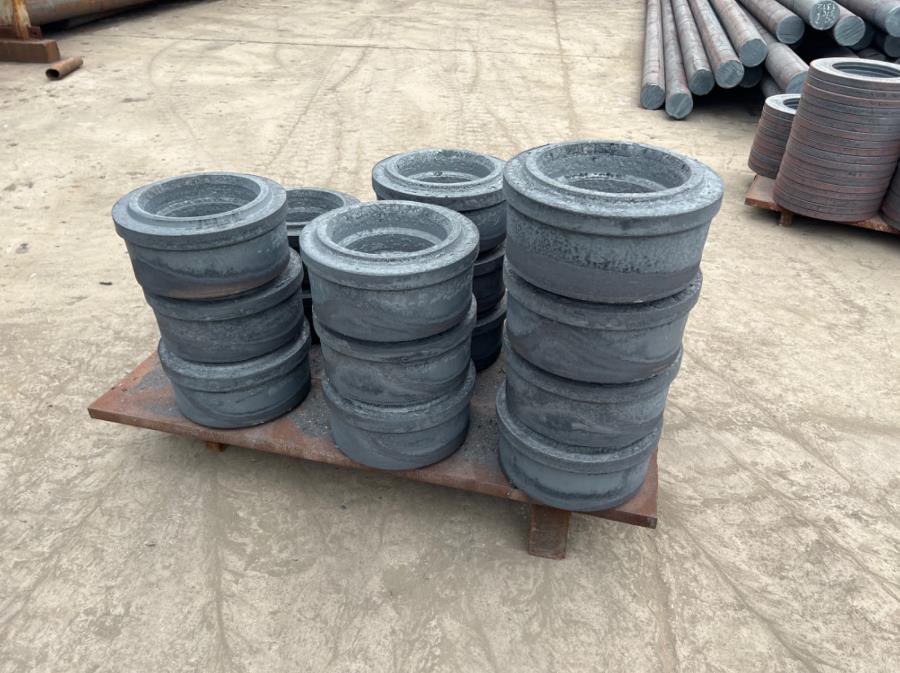

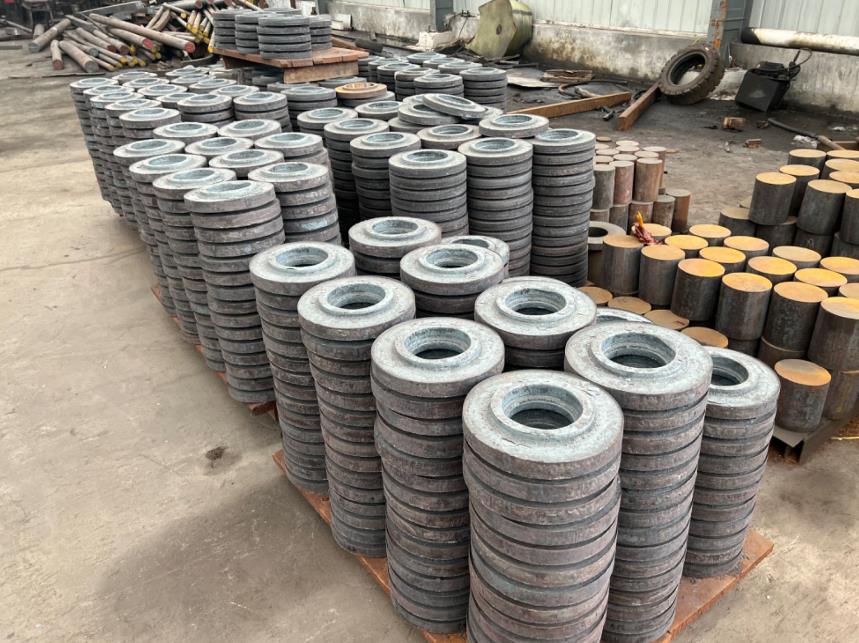

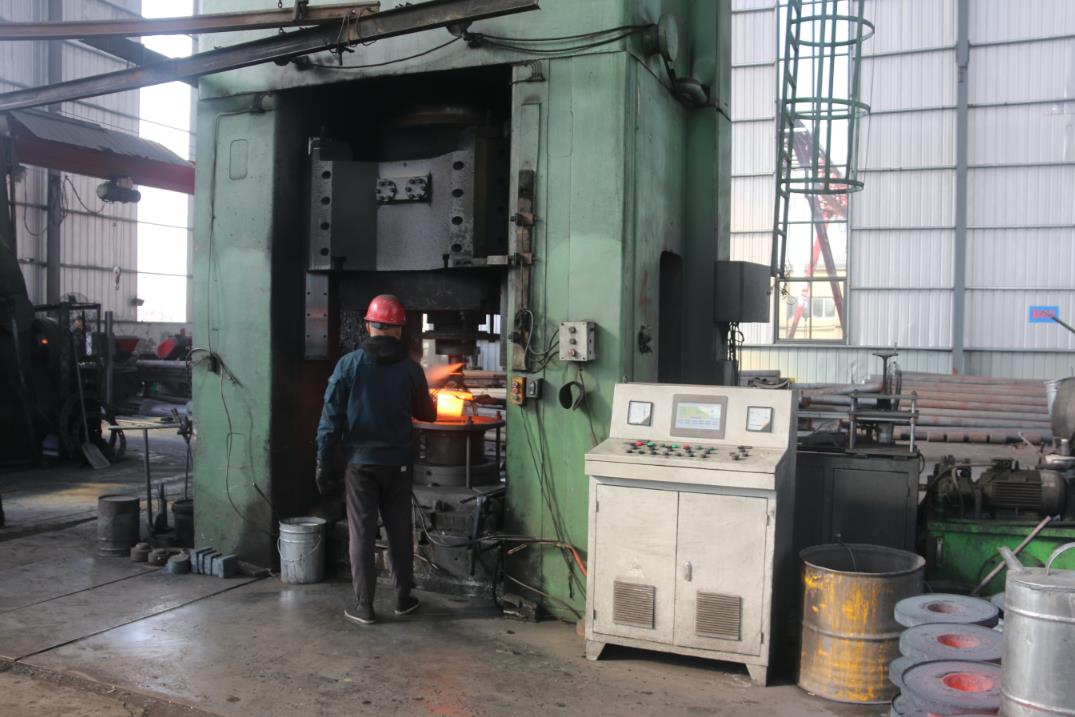

A forging is an object in which metallic is subjected to strain and formed to the required form or suitable compressive pressure thru plastic deformation. This pressure is normally performed thru the use of a hammer or pressure. The casting procedure builds great particle constructions and improves the bodily homes of the metal. In the realistic use of components, a right sketch can make sure that the particle drift is in the path of the predominant pressure. The benefits of forgings consist of stretchable size and shrinkable cross-section; Shrinkable length, stretchable cross-section

Socket welding flange (SW)

Socket welding flange

Socket Welding Flange

Sealing surface form: protruding surface (RF), concave and convex surface (MFM), tongue and groove surface (TG), ring connection surface (RJ)

Materials: Carbon Steel: ASTM A105, 20#, Q235, 16Mn, ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70;

Alloy steel: ASTM A182 F1, F5a, F9, F11, F12, F22, F91, A182F12, A182F11, 16MnR, Cr5Mo, 12Cr1MoV, 15CrMo, 12Cr2Mo1, A335P22, St45.8/III., 35CrMoV, 45CrMo, etc

Manufacturing standards: ANSI B16.5, GB/T9117.1-2000—GB/T9117.4-200, etc

(7) Threaded flange (TH)

Thread flange nominal diameter: DN8~DN100 Working pressure: 1.0~2.5 (MPa) Plate type thread flange material: stainless steel, carbon steel, alloy steel.

Thread flange use: suitable for fire protection, gas, hot and cold water, air conditioning, air pressure pipe, oil pipe, instrument, hydraulic pipe and other industrial and civil pipe thread lock sealing.

Flange cover (BL)

Flange cover, also known as blind flange, is a flange without a hole in the middle for sealing the pipe plug. There are many forms of sealing surfaces, including plane, convex, concave and convex surface, tongue and groove surface, and ring connection surface.

Sealing surface: planar (FF), protruding surface (RF), concave-convex surface (MFM), tongue and groove surface (TG), ring connection surface (RJ)

Production Materials:

Carbon Steel: ASTM A105, 20#, Q235, 16Mn, ASTM A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70;

Stainless steel: ASTM A182 F304, 304L, F316, 316L, 1Cr18Ni9Ti, 0Cr18Ni9Ti, 321, 18-8;

Alloy steel: ASTM A182 F1, F5a, F9, F11, F12, F22, F91, A182F12, A182F11, 16MnR, Cr5Mo, 12Cr1MoV, 15CrMo, 12Cr2Mo1, A335P22, St45.8/III.
