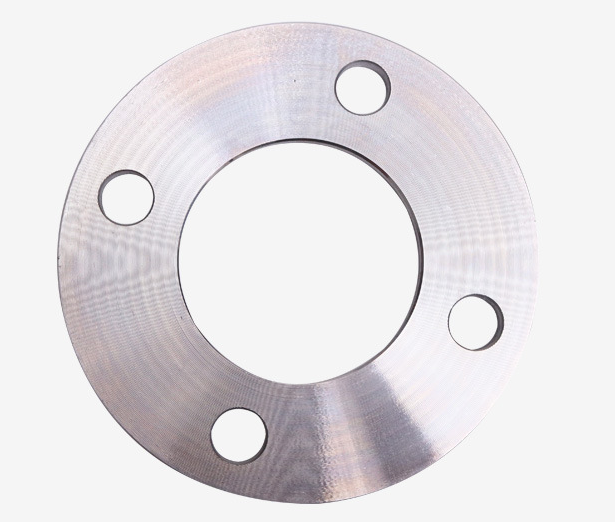

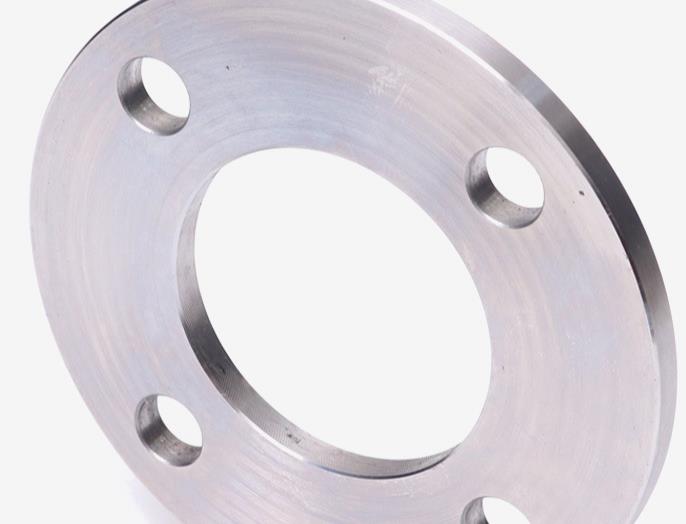

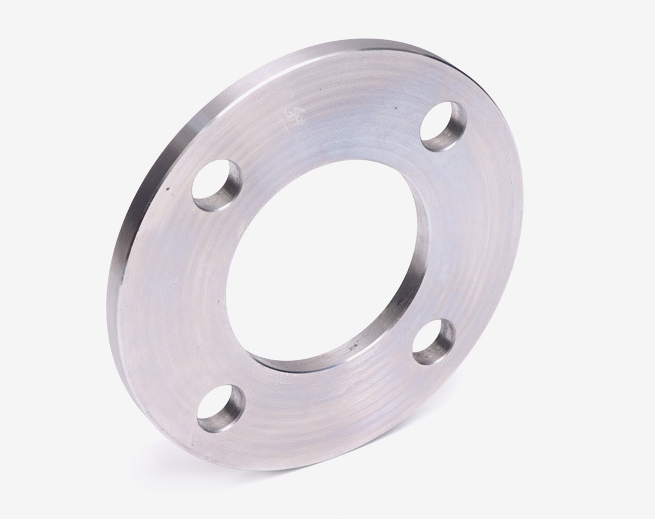

10K Sop JIS

A flange connection is the process of fixing two pipes, fittings, or equipment onto a flange plate, with flange pads added between the two flanges and bolted together to complete the connection. Some pipe fittings and equipment already come with their own flanges, which also belong to flange connections. Flange connection is an important connection method in pipeline construction. The flange connection is easy to use and can withstand large pressures. In industrial pipelines, flange connections are widely used. In households, the diameter of the pipeline is small and it is low pressure, and flange connections are not visible. If there are flange connected pipes and equipment everywhere in a boiler room or production site.

Contact Now WhatsApp

Product Details

Flange manufacturer

The flat flange has sufficient strength and must not deform during the tightening process. The sealing surface of the flange should be smooth and clean. When installing stainless steel flanges, oil stains and rust spots should be carefully cleaned. Gaskets shall have good oil resistance and aging resistance, as well as relatively good elasticity and mechanical strength. The stainless steel flange of the equipment should select gaskets with different cross-sectional areas and sizes based on the shape of the joint, and place them correctly.

1. Standard:	JIS B2220
2. Type:	SOP; SOH
3. Pressure Class:	5k;10k;16k;30K:40K
4. Dimension:	10A-1200A
5. Surface Treament:	Anti-rust oil; Yellow paint; Black paint;Hot dip Galavnised; Zinc.
6. Raw Material:	SS400
7. Packing：	Wooden Case, Pallet.
8. Payment:	L/C, T/T
9. Delivery time:	30 ~60 days after confirm the order

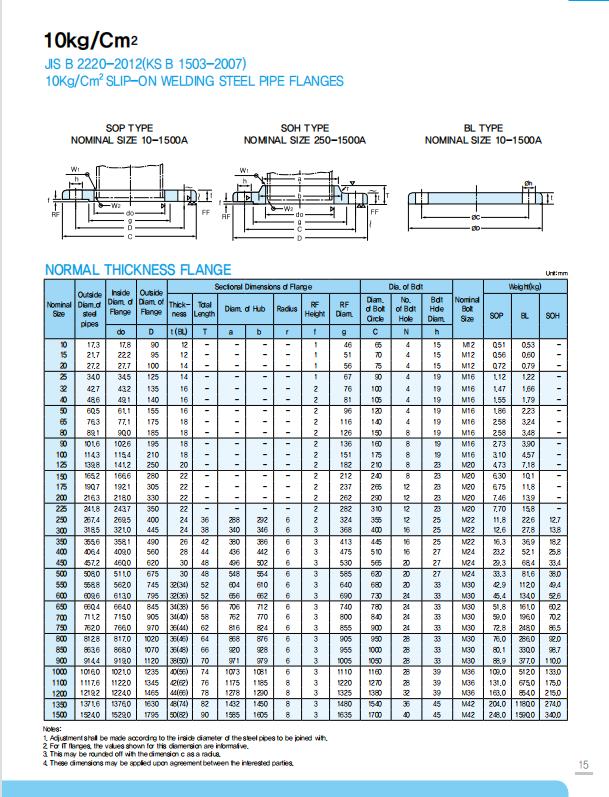

JIS FLANGE

1. Standard:	JIS B2220
2. Type:	SOP; SOH
3. Pressure Class:	5k;10k;16k;30K:40K
4. Dimension:	10A-1200A
5. Surface Treament:	Anti-rust oil; Yellow paint; Black paint;Hot dip Galavnised; Zinc.
6. Raw Material:	SS400
7. Packing：	Wooden Case, Pallet.
8. Payment:	L/C, T/T
9. Delivery time:	30 ~60 days after confirm the order
