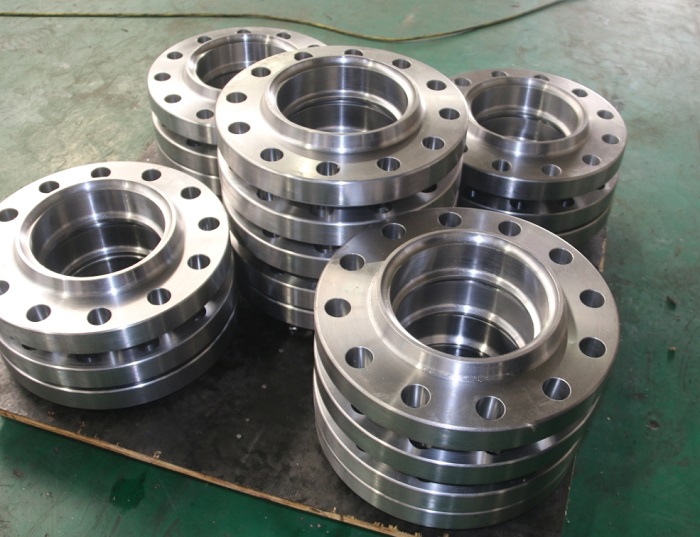

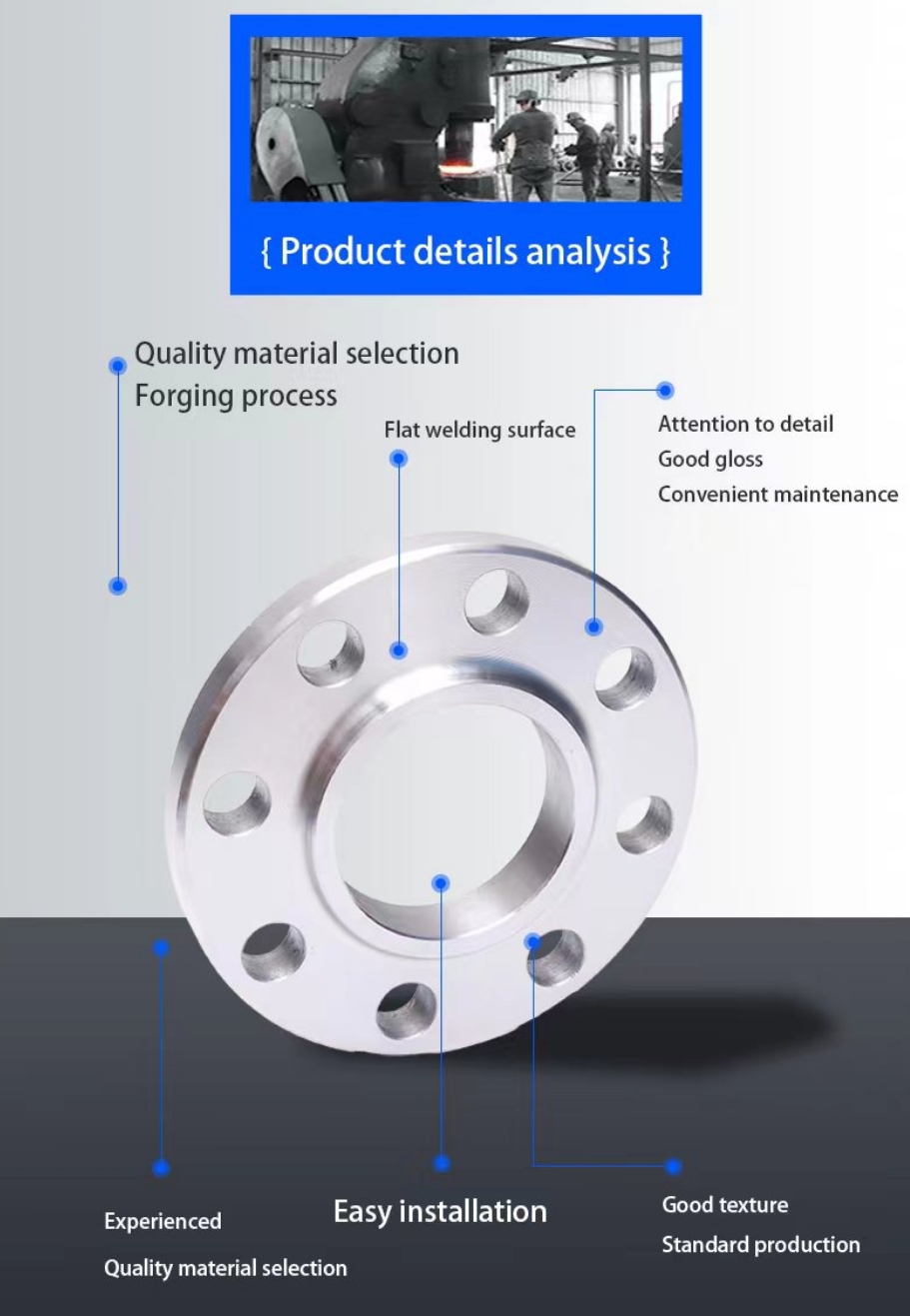

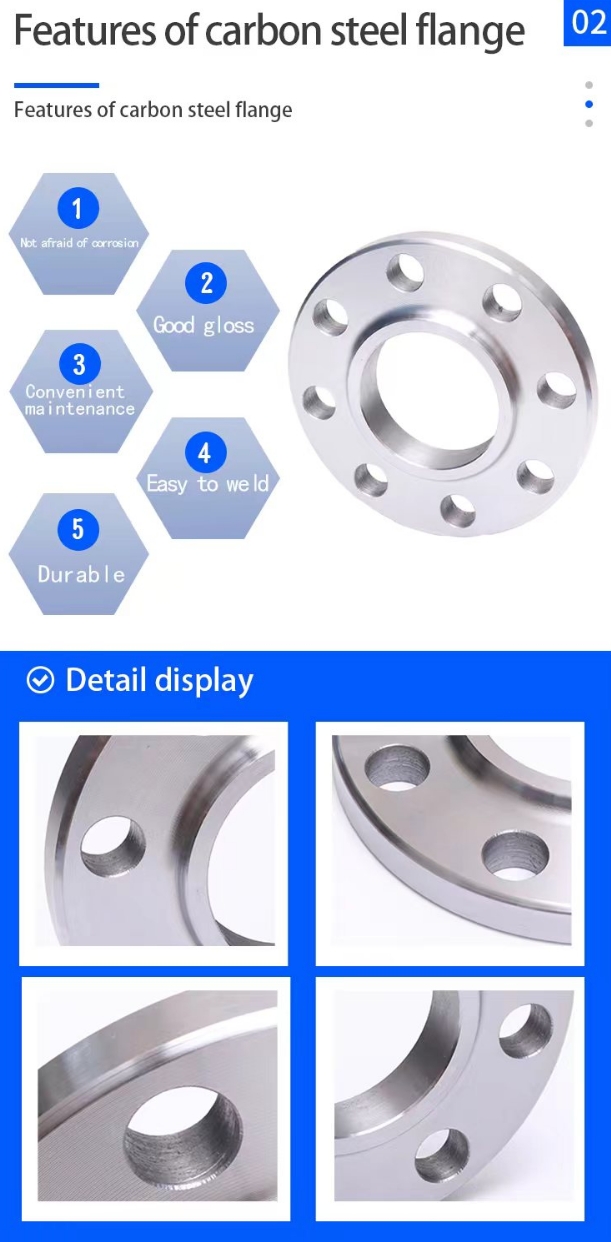

20K SOHRF Flange

Product material: carbon steel


Product specifications: customizable according to customer requirements


Compressive strength: strong


Connection form: welding


Product characteristics: low stiffness value, good elasticity



Contact Now WhatsApp
Product Details

Due to its exquisite complete performance, flanges are broadly used in primary engineering such as chemical engineering, construction, water supply, drainage, petroleum, mild and heavy industries, refrigeration, sanitation, plumbing, furnace protection, power, aerospace, shipbuilding, etc.

Flange, additionally regarded as flange disc or flange. Flanges are components that are interconnected between shafts and shafts for connections between pipe ends; There are additionally flanges used on the inlet and outlet of gear for the connection between two devices, such as reducer flanges. Flange connection or flange joint refers to the removable connection of flange, gasket and bolt as a set of blended sealing structure. Pipe flange refers to the flange used for piping in the pipeline device, and the inlet and outlet flange of the tools used in the equipment. There are holes in the flange, and the bolts make the two flanges intently connected. The flange is sealed with a gasket. Flange break up threaded connection (wire connection) flange, welded flange and clip flange. The flanges are used in pairs, the low-pressure pipeline can use the wire flange, and the welded flange is used for pressures above 4 kilograms. A gasket is introduced between the two flanges and then bolted to tighten. The thickness of the flange for unique pressures is different, and the bolts they use are additionally different.

Flange manufacturer




1. Standard:

JIS B2220

2. Type:

SOP SOH

3. Pressure Class:

5K 10K 16K 20K 30K 40K

4. Dimension:

10A-1200A

5. Surface Treament:

Anti-rust oil; Yellow paint; Black paint;Hot dip Galavnised; Zinc.

6. Raw Material:

SS400/SF440A

7. Packing

Wooden Case, Pallet.

8. Payment:

L/C, T/T

9. Delivery time:

30 ~60 days after confirm the order




Flange manufacturer


Flange

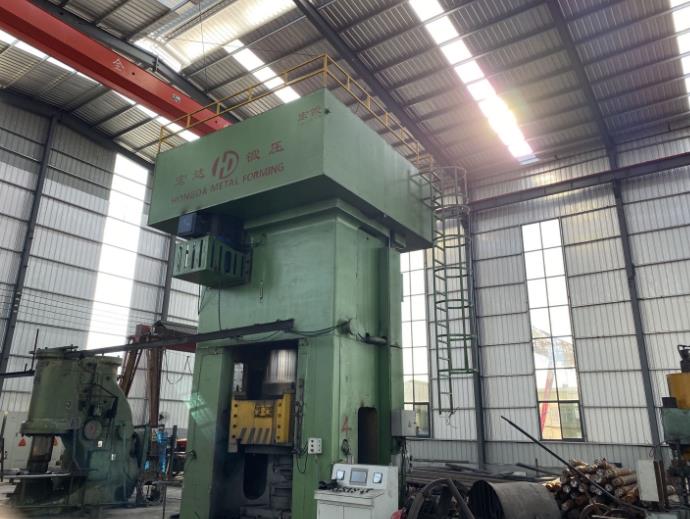

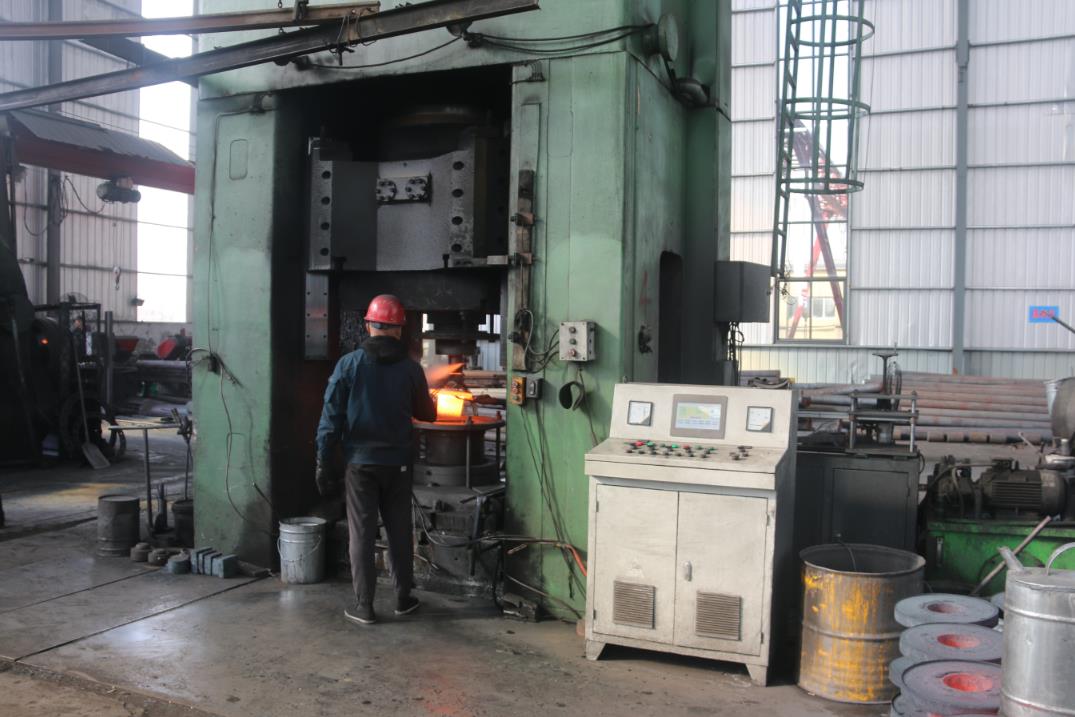

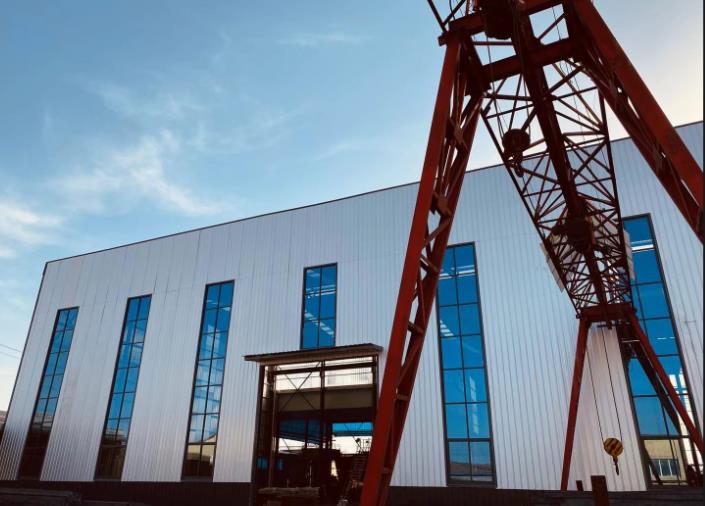

forge


forge


forge

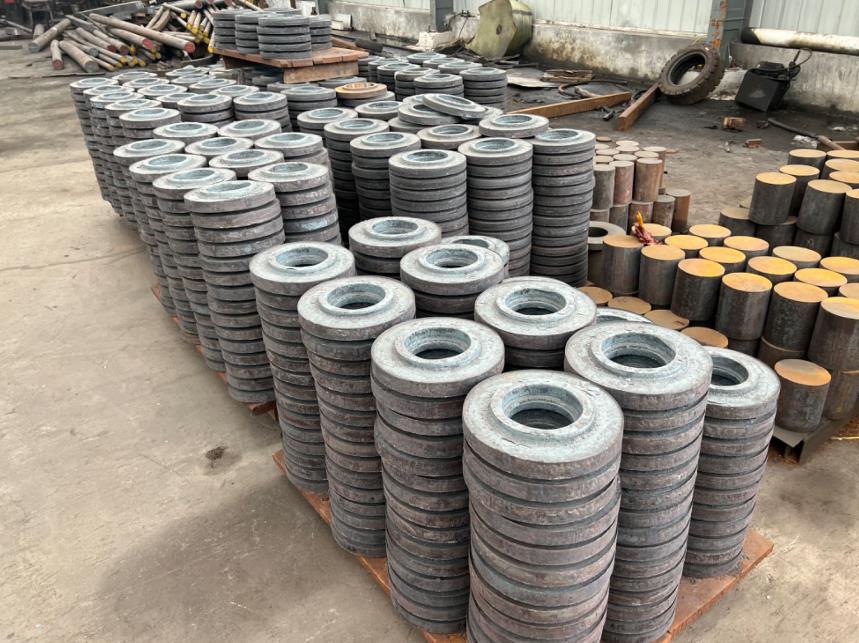

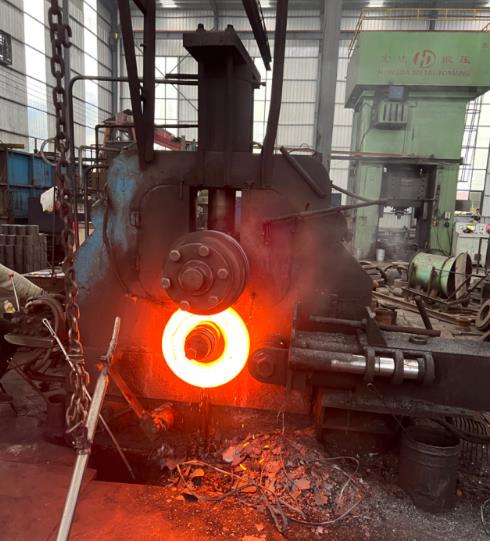

forged flange


forged flange

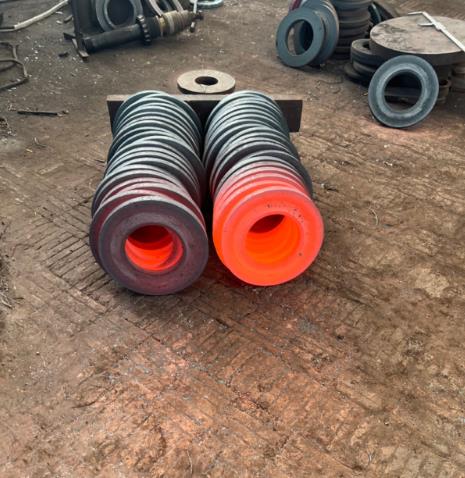

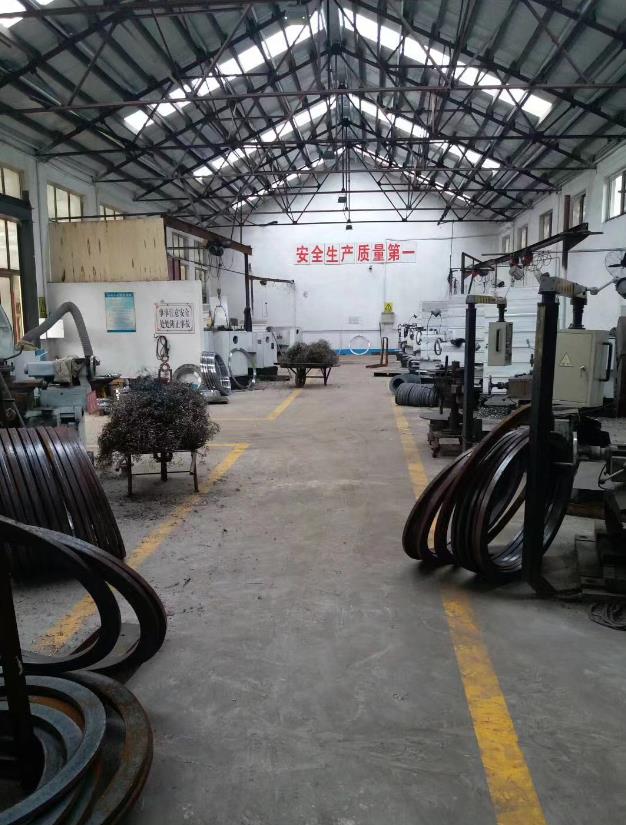

flange blank

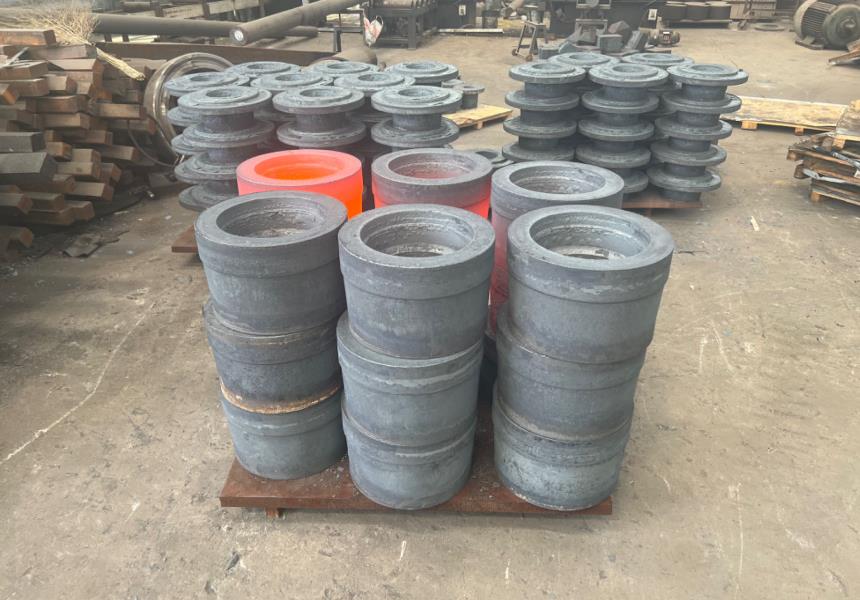

forgings


flange blank

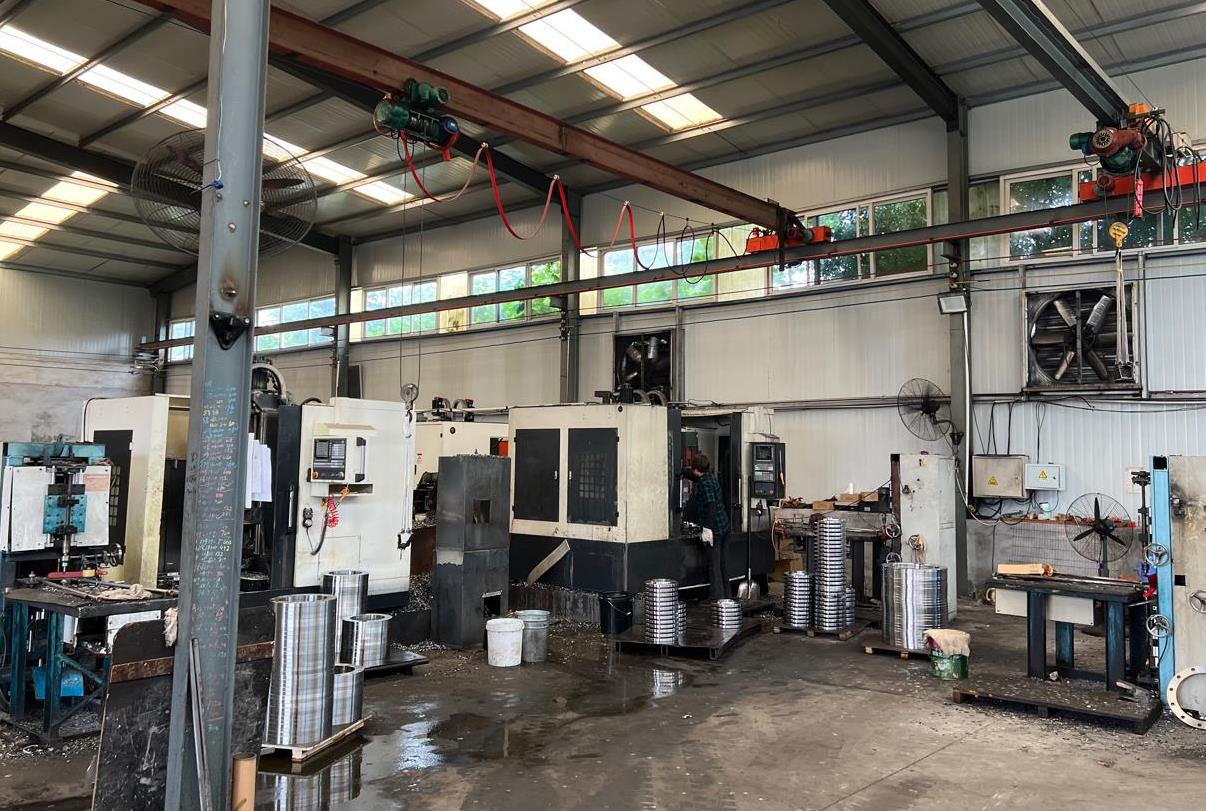

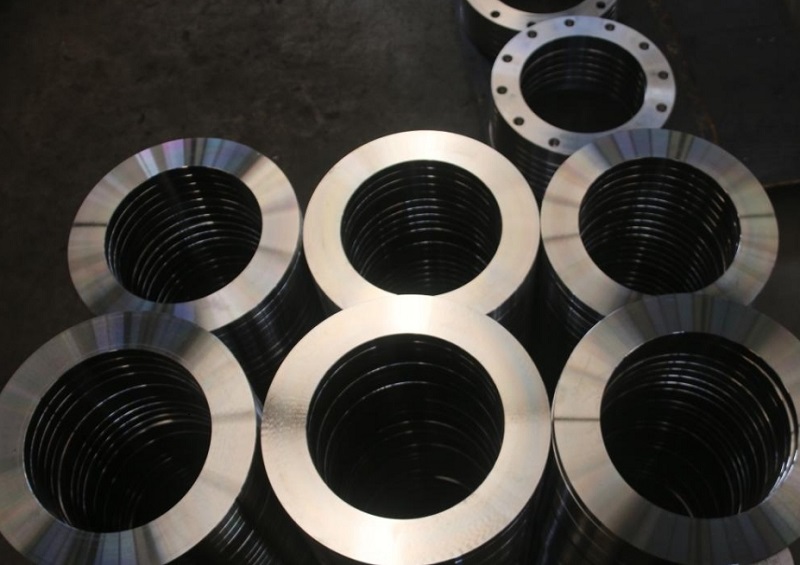

machined flange


machined flange


machined flange


flange manufacturer



quality management system

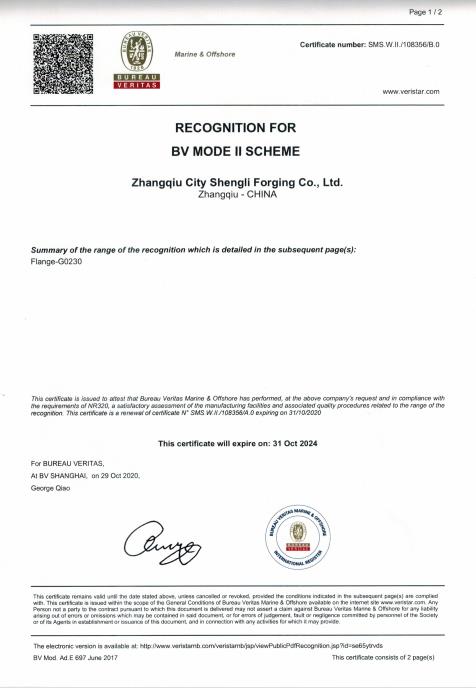

BV Certification

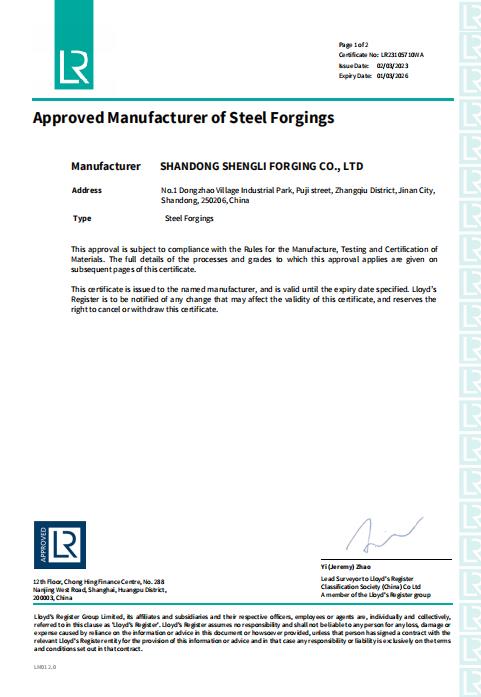

Lloyd's Register Certification

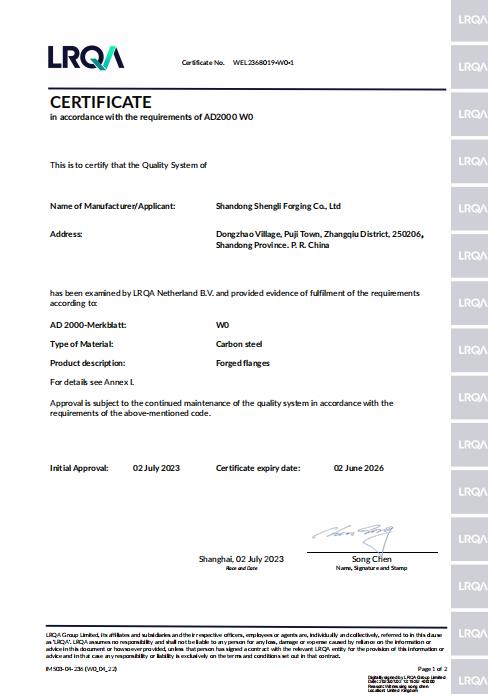

Pressure Equipment Certification




1. Standard:

JIS B2220

2. Type:

SOP SOH

3. Pressure Class:

5K 10K 16K 20K 30K 40K

4. Dimension:

10A-1200A

5. Surface Treament:

Anti-rust oil; Yellow paint; Black paint;Hot dip Galavnised; Zinc.

6. Raw Material:

SS400/SF440A

7. Packing

Wooden Case, Pallet.

8. Payment:

L/C, T/T

9. Delivery time:

30 ~60 days after confirm the order
